Minn Kota MKA-32 Quick Release Bracket Bottom Plate Only 1854060BPO
Part Number: 1854060BPO (Bottom Plate Only)

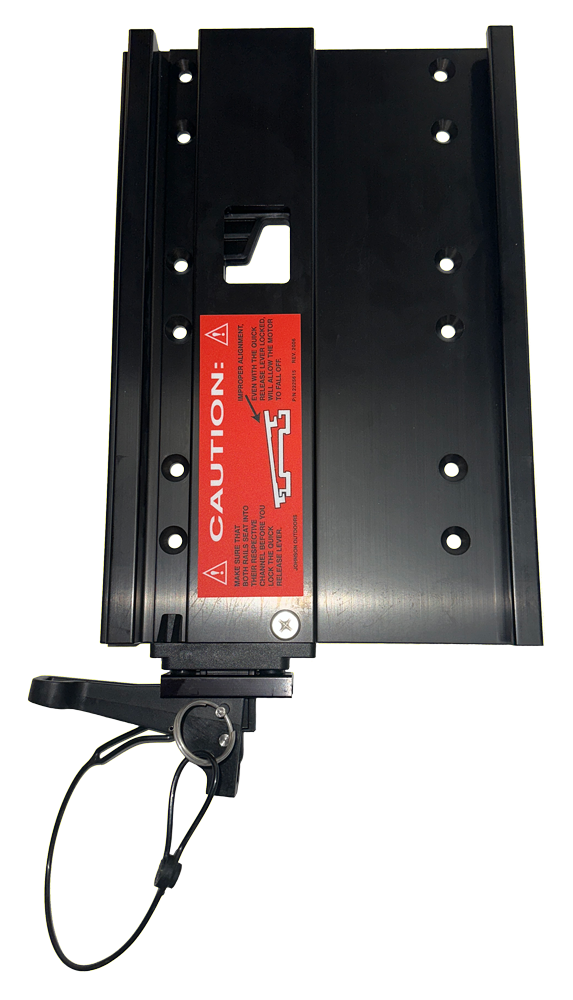

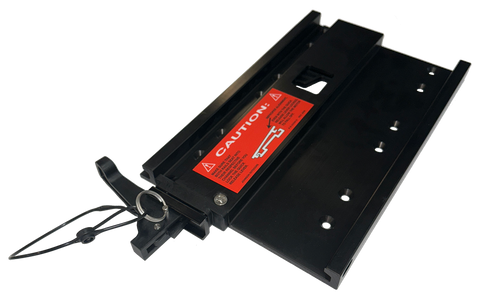

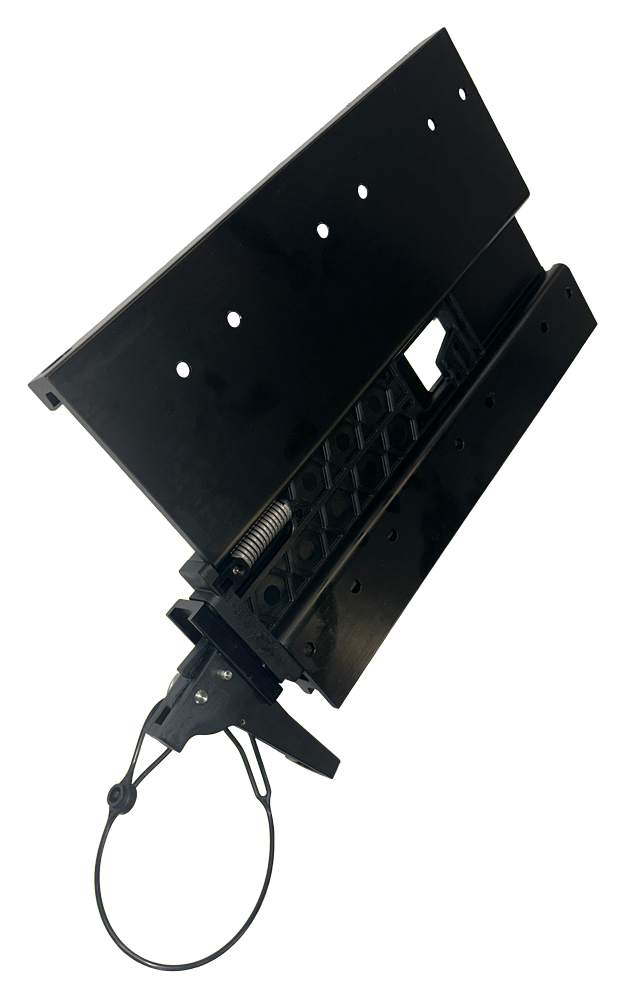

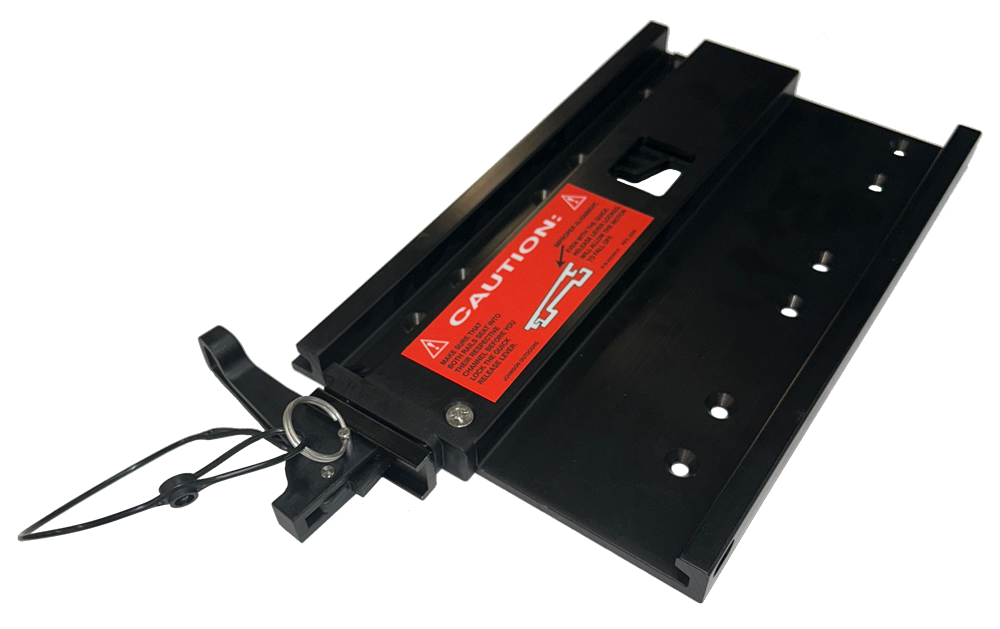

Minn Kota MKA-32 Quick Release Bracket Bottom Plate Only

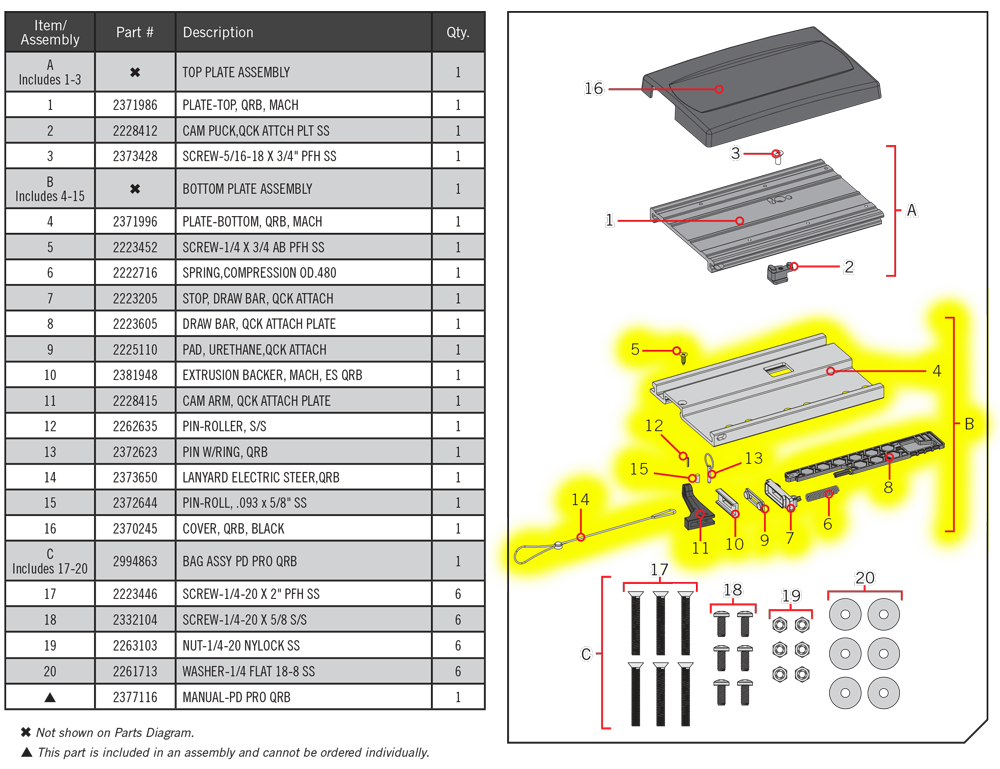

| Quantity | Part Number | Part Description |
| 1 | 2371996 | MKA-32 Bottom Plate |
| 1 | 2223452 | Screw, 1/4 x 3/4 AB PFH SS |
| 1 | 2222716 | Compression Spring, OD .480 |
| 1 | 2223205 | Quick Attach Draw Bar Stop |
| 1 | 2223605 | Quick Attach Plate Draw Bar |
| 1 | 2225110 | Quick Attach Urethane Pad |
| 1 | 2381948 | Extrusion Back, ES QRB |
| 1 | 2228415 | Quick Attach Plate Cam Arm |
| 1 | 2262635 | Roller Pin SS |
| 1 | 2372623 | Pin w/ Ring QRB |
| 1 | 2373650 | Electric Steer Lanyard QRB |
| 1 | 2372644 | Roll Pinm .093 x 5/8" SS |
Quickly remove any Minn Kota Ulterra, Terrova, PowerDrive V2 or PowerDrive bow-mount trolling motor. Cam-lock design and ultra-tight tolerances eliminate bracket movement and noise. Locking lever includes pin and lanyard. Upper and lower plates can be secured with padlock (not included). Composite cover attaches to lower half of bracket when motor is removed, keeping the deck profile clean.
FEATURES:
-
Allows trolling motor to be quickly removed from and reattached to boat deck
-
Cam-lock reduces bracket movement and noise
-
Composite cover (included) attaches to lower piece of bracket when motor is removed to keep deck profile clean
-
Includes stainless steel mounting hardware, lanyard, and locking pin
-
Upper and lower plates include slot for securing with padlock (not included) for added security
-
Compatible with Ulterra, Terrova, PowerDrive, PowerDrive V2, PowerDrive Pontoon and Deckhand 40
-
Designed for use in freshwater
