This kit will only fit 70# thrust Minn Kota trolling motors that were built from 2018 - present or have already been upgraded to the Core 128 Armature Assembly (p/n 92-100-128).
If the 70# armature assembly in your motor is stamped with Core 128, this is the correct Brush Kit for your trolling motor.
If the 70# armature assembly in your motor is stamped with Core 119, you will need the 70# Armature and Brush Plate Upgrade Kit / 2770128

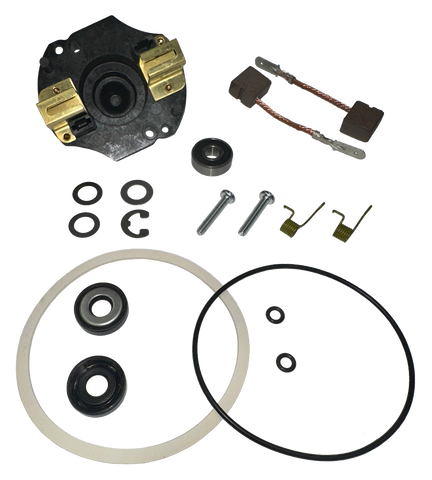

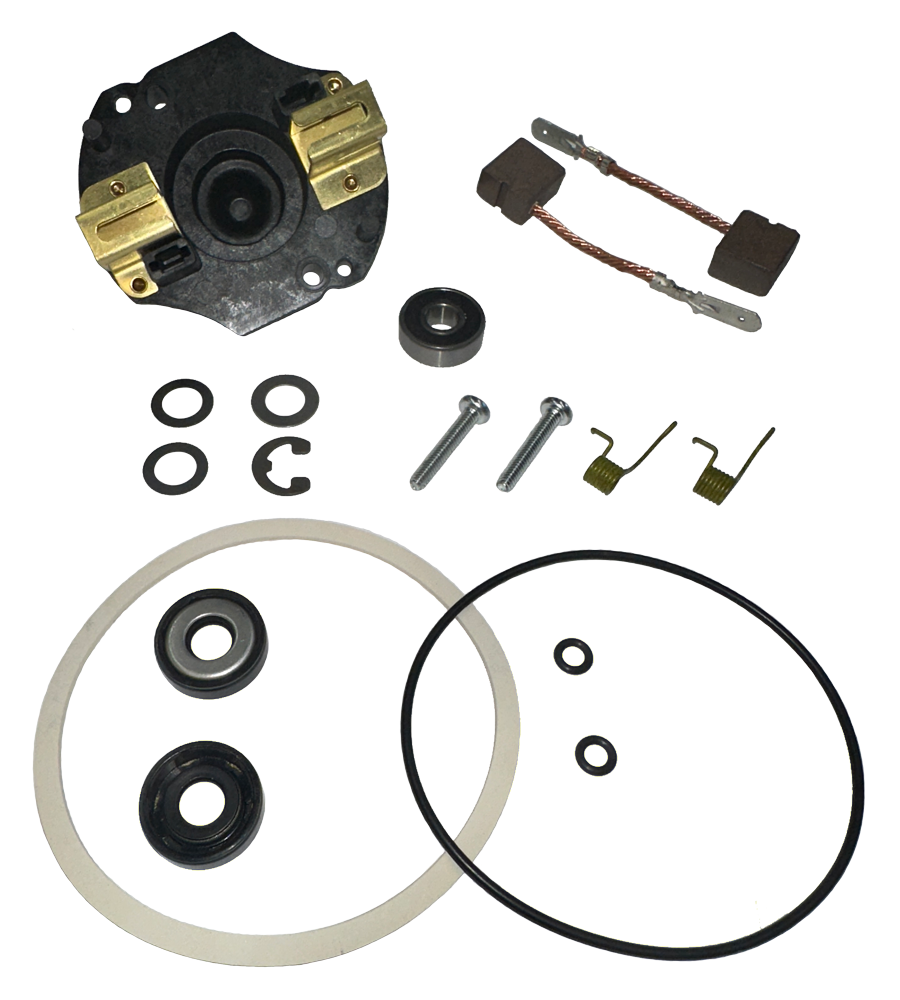

Parts Included in this Kit:
|Quantity||Part Number||Part Description|

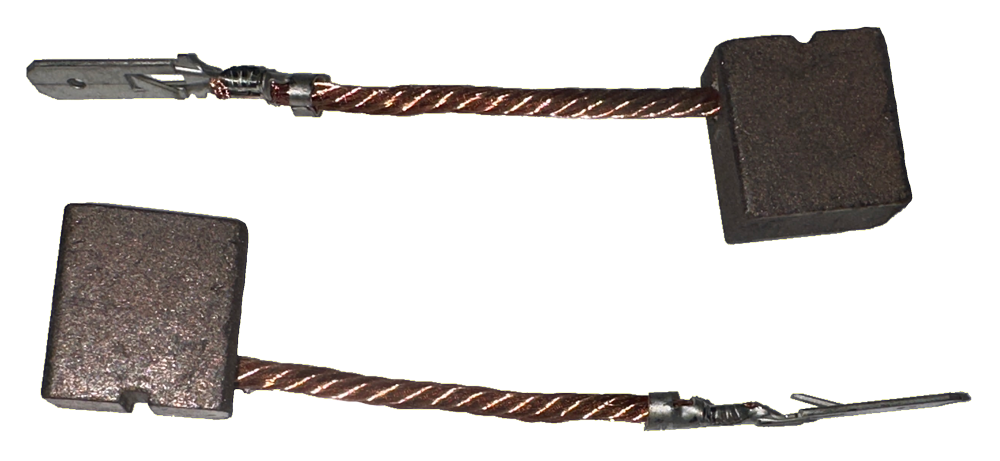

|2||188-038||70# Brush Assembly|

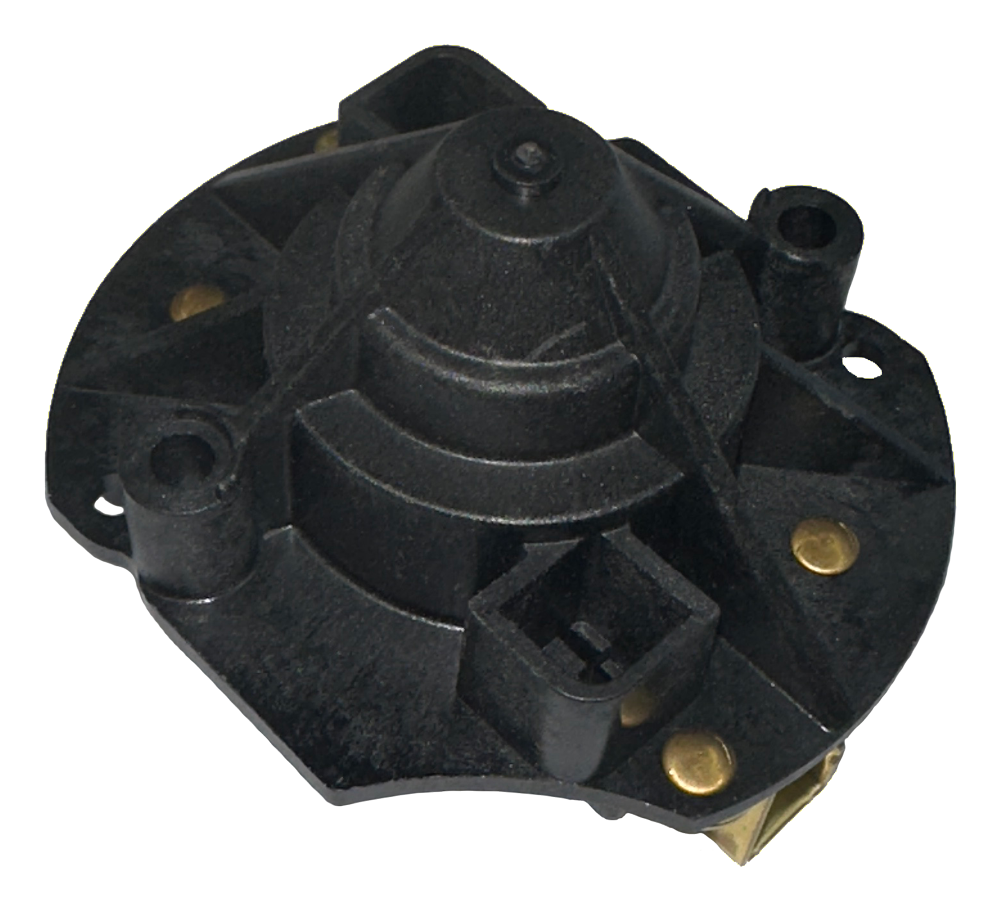

|1||9-738-038||70# Brush Plate|
|2||975-042||70# Brush Spring|
|1||140-010||Sealed Ball Bearing|
|2||701-008||Thru Bolt O Ring|
|1||880-003||Prop Shaft Seal|
|1||880-006||Prop Shaft Seal w/ Shield|
|2||830-007||Brush Plate Screw|
Anytime a lower unit is reassembled, the thru bolts need to be tightened to 35 - 45 inch pounds for 3-5/8" diameter lower units.

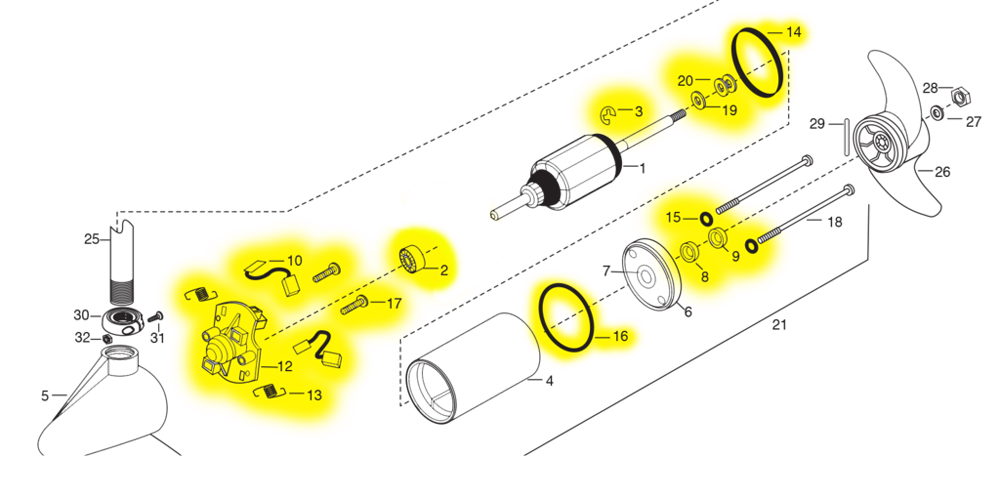

Not sure if this part will fit your Minn Kota trolling motor? Parts Diagrams
Minn Kota 70# 3-5/8" Brush Kit BRUSHKIT3.62(70)
Ordered the wrong part and your sales team caught it and called me . I was very happy with the product and customer service
I’ll let you know in May when the ice melts and I can get the boat in the water.
If you have a core 128 armature you need this beefed up brush kit otherwise you’ll melt the plastic ones. Great product.
