Northland Marine

Minn Kota 5 Speed Switch Upgrade Kit 5SPSWUPGRADEKITFW

Part Number:  5SPSWUPGRADEKITFW

Old Part Numbers:  2064020, 2064022, TURBOSWKIT

Minn Kota 5 Speed Switch Upgrade Kit

Minn Kota Turbo models that originally used the 2064020 or 2064022 5 speed switch can upgrade to the 2064028 switch with this simple conversion.

Parts included with this kit:

 Quantity Part Number Part Description
1 2064028 5 Speed Switch
1 2062505 Plastic Control Box Assembly FW
1 2060298 Control Box Cover FW
1 2065750 Generic Cover Decal FW
1 2062715 Handle Tilt Spring Detent
1 2062905 Strain Relief
6 2303412 Cover Screw, #6 - 20 x 5/8"
1 2990467 Handle Assembly SC
1 2383407 Screw, #10 - 24 x 2" PPH Zinc
1 2383124 Nyloc Nut, #10 - 24

It has been determined that the P/N 2064028 5 speed switch will work in place of the P/N 2064020 and 2064022 switches in Turbo models.  To accomplish this the existing head unit assembly will need to be removed and replaced with the parts included in this kit.  The new switch will need to be wired differently than the original.  The white and yellow wires will needs to be transposed on the new switch and the blue wire will no longer be used.  Tape the blue wire off to prevent any chance of shorting out the other wires.

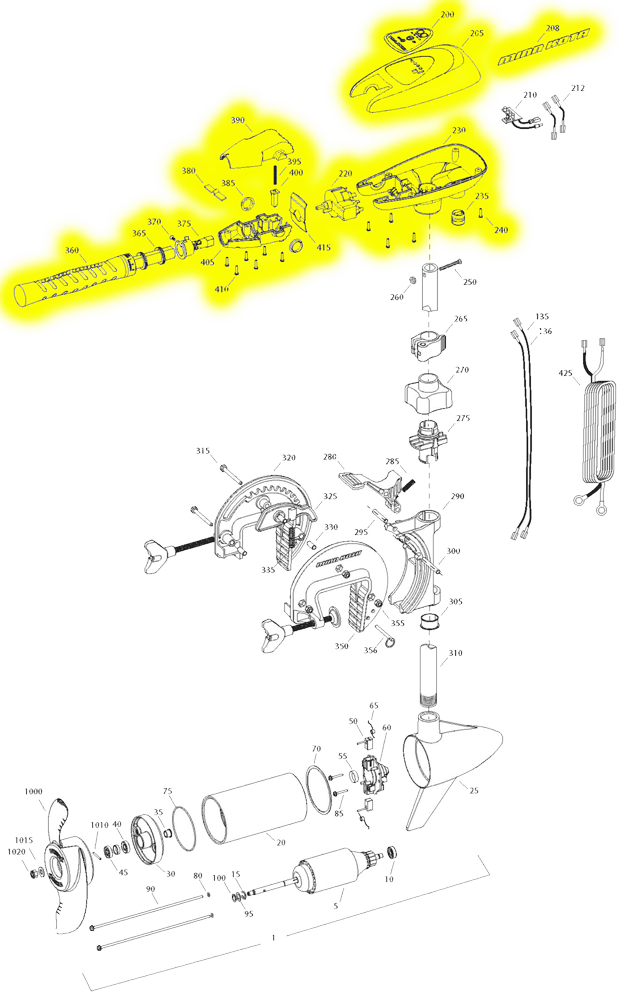

Not sure if this part will fit your Minn Kota trolling motor?  Parts Diagrams
