Minn Kota Terrova to BT iPilot Link Upgrade Kit FW 2774153-12V
Part Number: 2774153-12V
Old Part Numbers: 1866400, 2774058
Minn Kota Freshwater Legacy Terrova to BT iPilot Link Upgrade Kit
This kit includes everything needed to upgrade all freshwater 12 volt Minn Kota Legacy Terrova trolling motor models to the newest BT iPilot Link system made by Minn Kota. The control box assembly, control board and control board cover are included in this kit and will all need to be replaced to allow this conversion to work. Please be aware that after installing the iPilot Link system, you will no longer have use of your current foot pedal. If a foot pedal is desired, you will need to purchase p/n 2994733.
Fits the following freshwater Minn Kota trolling motor models:
- Minn Kota Terrova 55 models from 2007 - 2016
Features:
- i-Pilot® Link™ Integrated GPS Trolling System: i-Pilot® Link™ gives you unprecedented control over your boat by linking your trolling motor to your Humminbird® fish finder. Control your trolling motor from Link's color touch-screen remote or the Humminbird. You can set Spot-Locks, record paths, follow depth contours, automatically navigate to your favorite spots, control speed and steering, and more.
- Spot-Lock: Just press a button, and Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on i-Pilot GPS systems, Spot-Lock gives you the power to stay right on top of any productive fishing spot automatically, without touching your trolling motor. Spot-Lock with jog can be accomplished by installing the provided heading sensor. You can use Jog to move your Spot-Lock location five feet in any direction. Activate Spot-Lock from the i-Pilot remote.
- AutoPilot™: Automatically navigate your boat in any direction you choose. Just point the head of your trolling motor in the direction you want to travel, activate AutoPilot™, and your trolling motor will keep you on that heading automatically, even correcting for wind, waves and current.
- Mobile App Compatibility: Control i-Pilot directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and Advanced AutoPilot — plus the ability to update i-Pilot software.

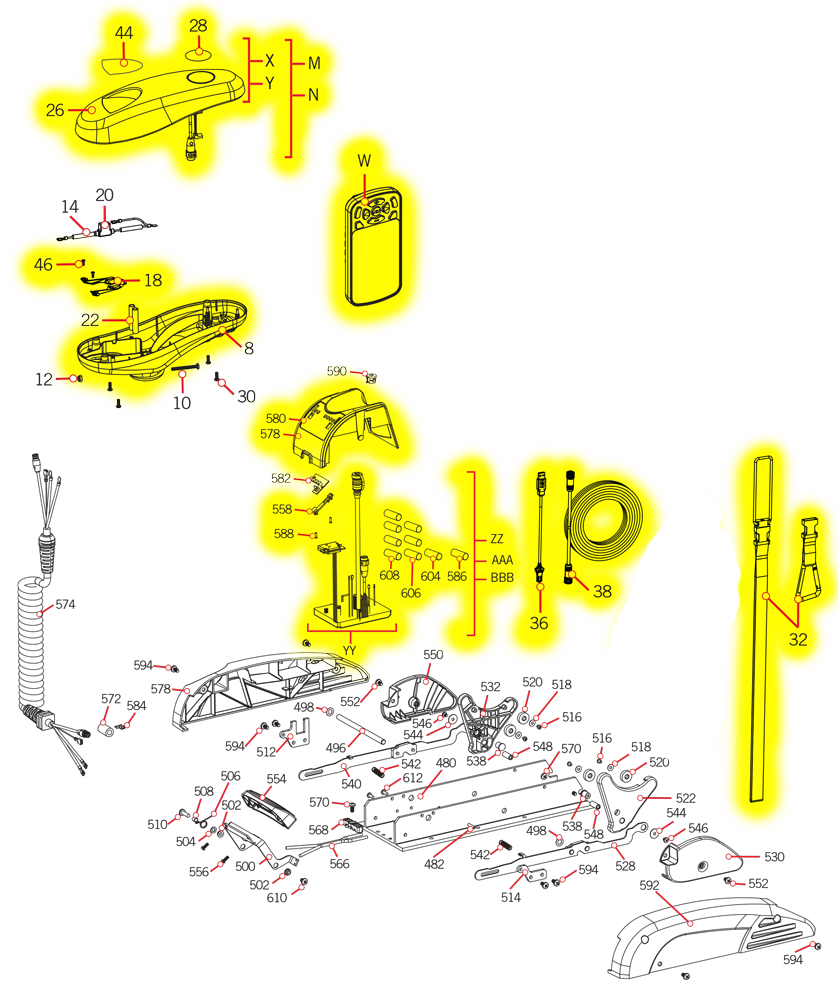

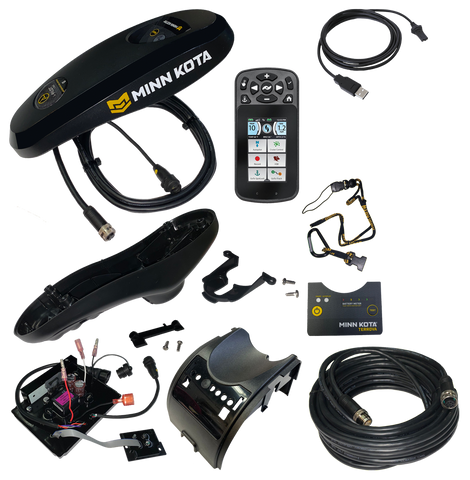

Parts included with this kit:
| Quantity | Part Number (Old Part Numbers) | Part Description |
| 1 | 2774177 (2774064) | Terrova BT iPilot Link Head Controller FW |
| 1 | 2292500 | Control Box Assembly FW |
| 1 | 1866650 (2994076) | iPilot Link BT Remote |
| 1 | 1866460 (2373241) | iPilot Link Charging Cable |
| 1 | 2884706 (2224706) | Insert Plug/Screw Kit FW |
| 1 | 2390800 (2370817, 2370818, 2994862, 2994862R) | Lanyard w/ Carabineer |
| 1 | 490389-1 (AS ECX 30E, 760025-1) | 30' Male to Female Ethernet Cable |
| 1 | 2397103 | iPilot Link BT Quick Reference Manual |
| 1 | 2324972 | iPilot Link BT Installation Instructions |
| 2 | 2375400 | Heat Shrink (Only needed for models equipped with US2) |
| 1 | 1866680 (2996400) | Heading Sensor BT |
| 1 | 2774067 | 12v Control Board Assembly |
| 2 | 2383428 | Screw #4-24 x 3/8" |
| 1 | 2320830 | Power Button/Battery Meter Locking Tab |
| 1 | 2326530 | Control Board Cover/Center Housing FW |
| 1 | 2325657 | Power Status/Battery Meter Decal FW |
In addition to the included instructions, you will need to remove the screw that holds the control box to the shaft of the trolling motor and install the new control box that is included with this kit. You will also need to remove the existing control board located underneath the control board cover at the base of the trolling motor and install the new control board and control board cover also included with this kit. These steps are not included in the installation instructions provided with the kit. Please note, after installing the new control board and control board cover there will be a power button that needs to be pressed to turn on the trolling motor. Installation instructions.
After the installation process has been completed and your trolling motor is connected to power you will need to learn the remote to the head controller. Instructions are as follows: iPilot BT Remote Pairing Instructions
