Humminbird ICE XPLORE 10 MEGA Live 2 Bundle 412360-1
Sold out.
Product Code: 412360-1
Humminbird ICE XPLORE 10 MEGA Live 2 Bundle
PLEASE CALL OR EMAIL FOR PRODUCT AVAILABILITY
Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.
FEATURES:
- Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
- Designed for Ice: Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions.
- Ice Mode: Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.

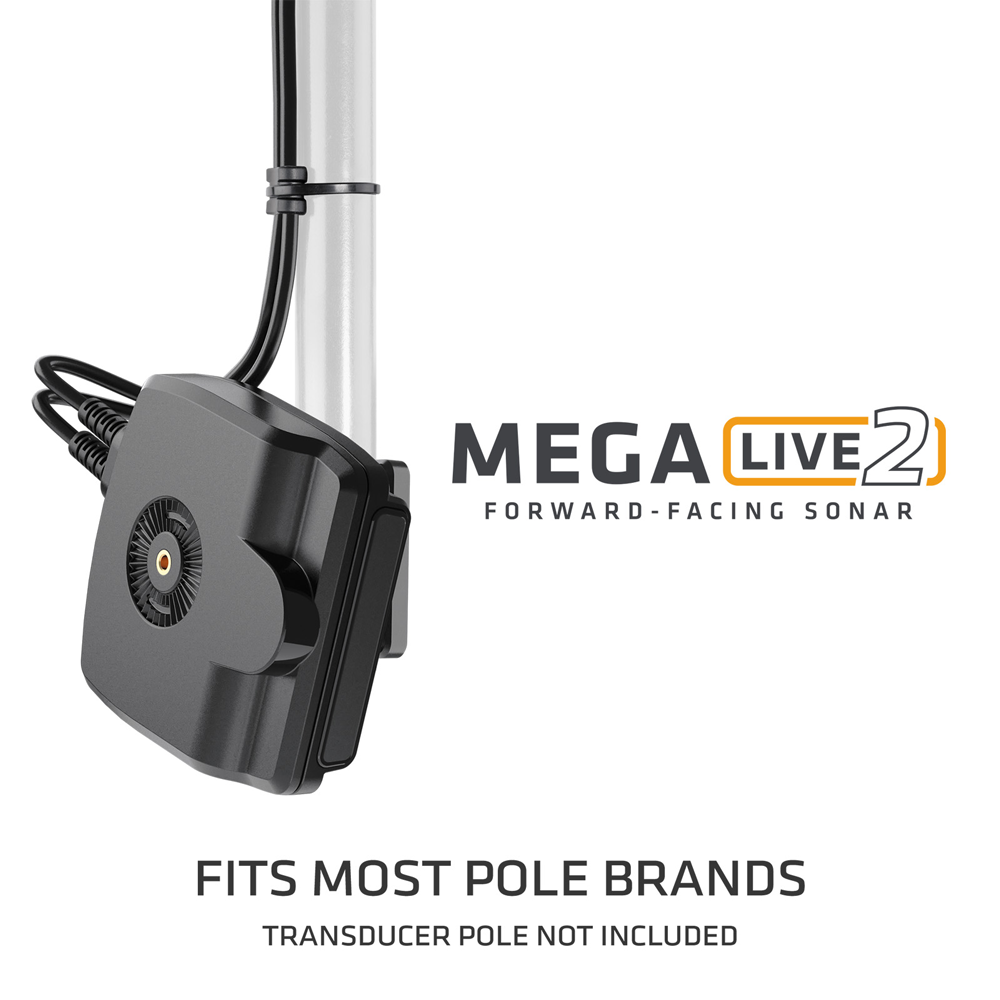

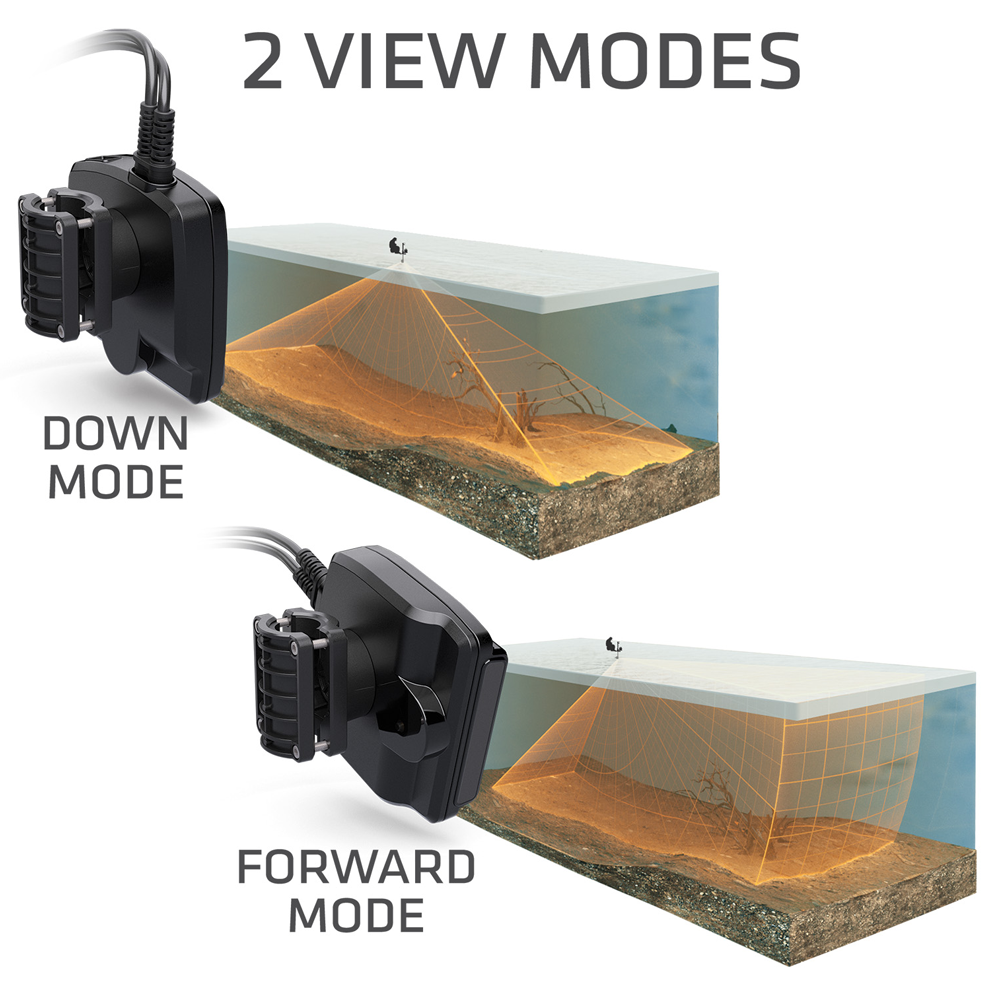

- Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
- Lakemaster Mapping Included: Ice XPLORE fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
- Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
- Warranty: Ice XPLORE includes a 2-year limited warranty (Additional third year of warranty is available with product registration). MEGA Live 2 is covered by a 2-year warranty.

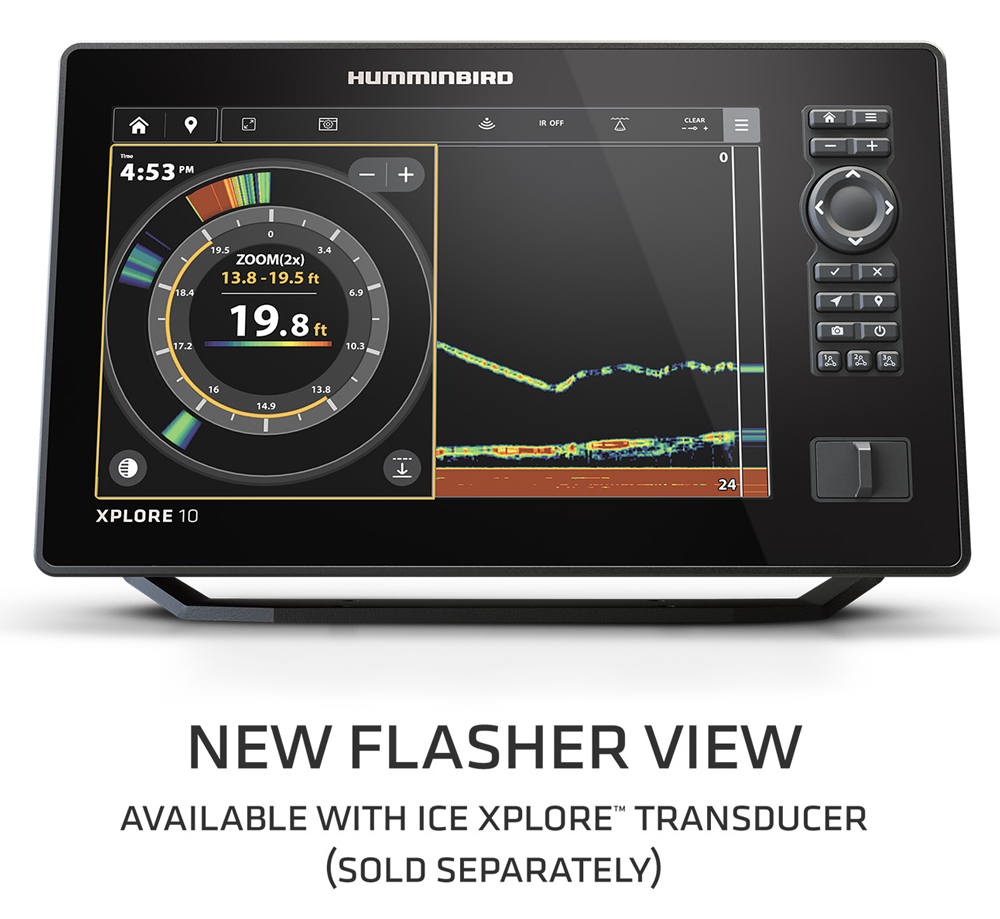

- 2D Flasher Modes: XPLORE units now support advanced 2D flasher modes for enhanced vertical jigging and ice fishing visibility. (Requires XI 14 transducer).

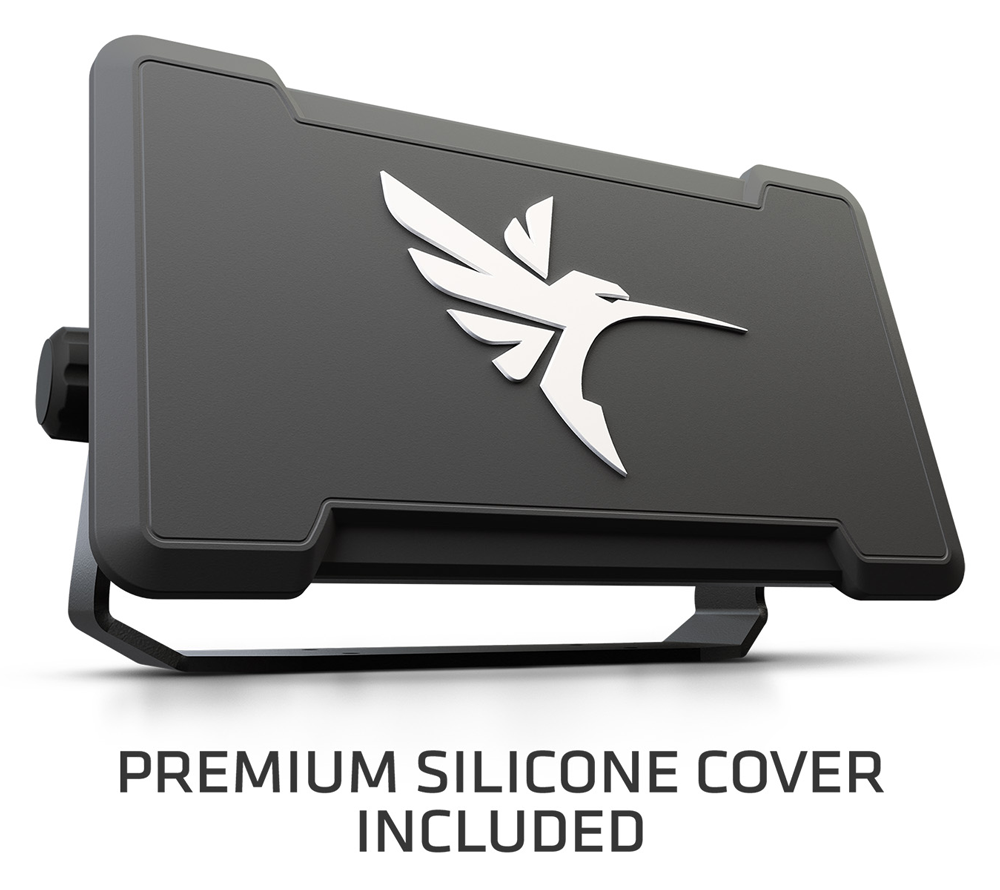

- Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse
SPECS:
| Model | ICE XPLORE 10 + MEGA Live 2 Bundle |
| Product Code | 412360-1 |
| Series | XPLORE |
| UPC | 0082324061530 |
| As shown MSRP |
$3,299.99
|
| Display Size - Diagonal | 10.1 in |
| Length | 7.25 in | 18.41 cm |
| Height | 12.1 in | 30.73 cm |
| Width | 3.3 in | 8.38 cm |
| Weight | 4 lb 12 oz | 2.15456 kg |
| Display Pixel Matrix | 1280 x 720 |
| Transducer Included | MEGA Live Imaging |
| Compatible With | Minn Kota US2 Sonar, Minn Kota iPilot Link, Radar, One-Boat Network, MEGA Live 2 |
| Features | Touch Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | MEGA Side Imaging+, MEGA Side Imaging, MEGA Down Imaging+, MEGA Down Imaging |
| Sonar-Coverage | 2 0°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 5 0/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| Live Sonar-Coverage | 20 degrees x 120 degrees |
| CHIRP-Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP-Imaging Frequencies Supported | 455 kHz SI+ (405-505 kHz), 455 kHz DI+ (420-520 kHz), Compact MEGA SI+ (1100-1200 kHz) |
| Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 400 ft (MEGA) |
| Interface | Touch Screen, Keypad Control |
| Power Draw | 2.2 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 12.098 in W x 7.702 in H x 3.891 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| MEGA Live Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| Coastmaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota Advanced GPS Navigation Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| Heading Sensor GPS (NMEA 2000) Compatibility | Yes |
| NMEA2000 | Included |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | Yes |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 24-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | Three-Year Warranty with Registration |
RESOURCES:
Humminbird ICE XPLORE Installation Instructions
