Minn Kota 5 Speed Switch Upgrade Kit 5SPSWUPGRADEKITFW
Part Number: 5SPSWUPGRADEKITFW
Old Part Numbers: 2064020, 2064022, TURBOSWKIT
Minn Kota 5 Speed Switch Upgrade Kit
Minn Kota Turbo models that originally used the 2064020 or 2064022 5 speed switch can upgrade to the 2064028 switch with this simple conversion.

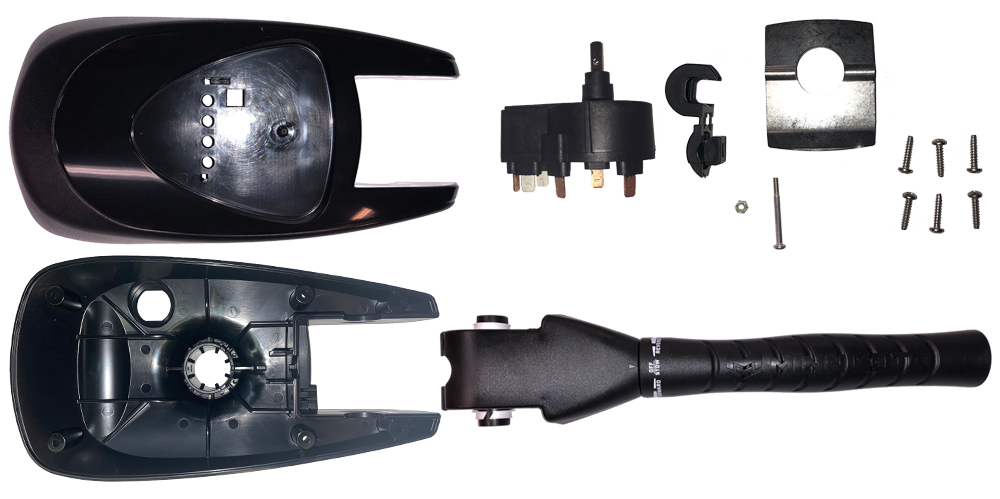

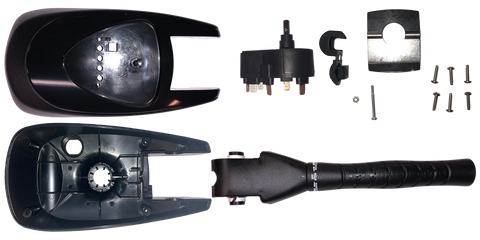

Parts included with this kit:
| Quantity | Part Number | Part Description |
| 1 | 2064028 | 5 Speed Switch |
| 1 | 2062505 | Plastic Control Box Assembly FW |
| 1 | 2060298 | Control Box Cover FW |
| 1 | 2065750 | Generic Cover Decal FW |
| 1 | 2062715 | Handle Tilt Spring Detent |
| 1 | 2062905 | Strain Relief |
| 6 | 2303412 | Cover Screw, #6 - 20 x 5/8" |
| 1 | 2990467 | Handle Assembly SC |
| 1 | 2383407 | Screw, #10 - 24 x 2" PPH Zinc |
| 1 | 2383124 | Nyloc Nut, #10 - 24 |
It has been determined that the P/N 2064028 5 speed switch will work in place of the P/N 2064020 and 2064022 switches in Turbo models. To accomplish this the existing head unit assembly will need to be removed and replaced with the parts included in this kit. The new switch will need to be wired differently than the original. The white and yellow wires will needs to be transposed on the new switch and the blue wire will no longer be used. Tape the blue wire off to prevent any chance of shorting out the other wires.
Not sure if this part will fit your Minn Kota trolling motor? Parts Diagrams
